5.5 Inch Pmoled Display Screen 256*64 Dots 30 PINS 3/4-Wire SPI Interface Driving IC SSD1322

Product Categories
HuaXin Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

5.5 Inch Pmoled Display Screen 256*64 Dots 30 PINS 3/4-Wire SPI Interface Driving IC SSD1322

Brand Name : HuaXin

Model Number : HX2566455

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $10.1

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : yellow oled

name : oled module

size : 5.5 inch

Color : yellow/green

Brightness : 100c/d

Interface : 30pins 3/4-wire SPI

Driving IC : SSD1322

Connecting method : connector

Contact Now

5.5 Inch PMOLED Display Screen 256×64 Dots 30 PINS 3/4-Wire SPI Interface Driving IC SSD1322
Product Specifications
Display Technology Yellow OLED
Product Name OLED Module
Size 5.5 inch
Color Yellow/Green
Brightness 100c/d
Interface 30pins 3/4-wire SPI
Driving IC SSD1322
Connecting Method Connector
Technical Parameters
Part NO. HX2566455
Display Technology PMOLED
Diagonal Screen Size 5.5 inch
Resolution 256×64
Viewing Angle Free
Active Area (mm) 135.65×33.89mm
Module Size (mm) 146×65×2mm
Pixel Pitch 0.53×0.53
Pixel Size 0.29×0.29
Operation Temp -30~70°C
Display Color Yellow/Green
Interface 3/4-wire SPI
Pin Quantity 30 PINS
Driving IC SSD1322
Connecting Method Connector

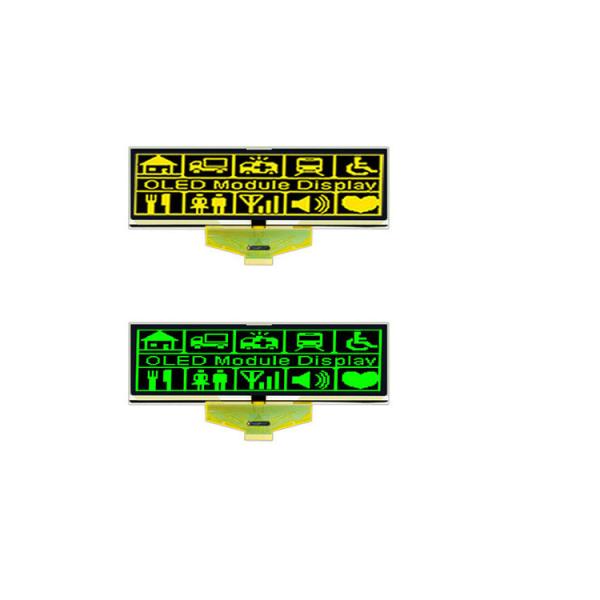

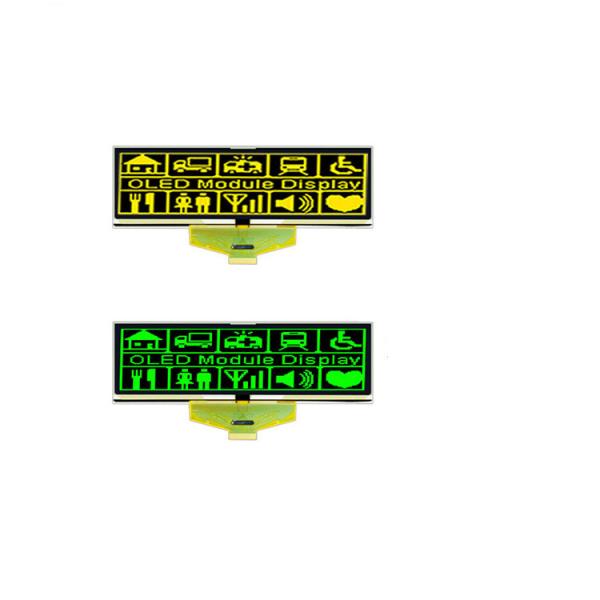

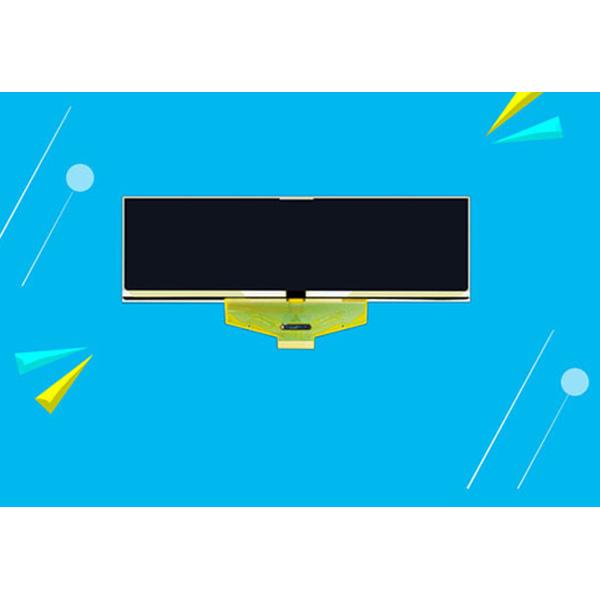

Product Images
5.5 Inch Pmoled Display Screen 256*64 Dots 30 PINS 3/4-Wire SPI Interface Driving IC SSD1322
5.5 Inch Pmoled Display Screen 256*64 Dots 30 PINS 3/4-Wire SPI Interface Driving IC SSD1322
5.5 Inch Pmoled Display Screen 256*64 Dots 30 PINS 3/4-Wire SPI Interface Driving IC SSD1322
5.5 Inch Pmoled Display Screen 256*64 Dots 30 PINS 3/4-Wire SPI Interface Driving IC SSD1322
OLED Product Knowledge
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast and color saturation
  • Lower power consumption
OLED Disadvantages
  • AMOLED is more expensive than LCD and TFT
  • Lifetime is shorter than LCD and TFT
Company Information
HuaXin Advantages
  • Factory base located at inland city with cost effective operations
  • Most advanced equipment ensuring stable quality
  • Most processes use fully automatic equipment for efficiency and quality
  • Professional engineers with over 20 years experience in LCD field
  • Self-design capability for customized products
Our Certificates
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Profile
  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series
  • Registered capital: Twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Wearable Devices
  • Portable Audio Players
  • Thermostats and Home Automation Devices
  • Car Dashboards and Instrument Clusters
  • Medical Devices
  • Consumer Electronics
  • Industrial and Professional Equipment
PMOLED Characteristics
  • Display Structure: Consists of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns where each OLED acts as a single pixel
  • Passive Matrix: Uses passive matrix addressing scheme where each row and column intersection is controlled by a driving circuit
  • High Contrast and Color Saturation: Achieves deep blacks and vibrant colors without need for backlight
  • Power Efficiency: Consumes power only for active pixels
  • Thin and Flexible: Can be manufactured on flexible substrates suitable for curved displays or wearable devices
  • Limited Resolution and Size: Typically limited in resolution and more suitable for smaller screens
  • Screen Persistence: Susceptible to screen persistence or burn-in with prolonged static images
AMOLED vs PMOLED Advantages
  • Higher Resolution: AMOLED offers better pixel density
  • Better Color Reproduction: More accurate and vibrant colors
  • Faster Refresh Rates: Improved performance for dynamic content
  • Improved Power Efficiency: More efficient use of power
  • Larger Screen Sizes: Better suited for bigger displays
  • Flexibility and Curved Displays: Advanced flexible display capabilities
